PTSii

Personalized Tourniquet System
PTSii
State-of-the-Art Electronic Tourniquet System with Advanced Personalization Safety Features

Two-In-One

Available in both single and twin system configurations, fully independent channels are color-coded for optimal safety during simultaneous bilateral limb surgeries and IVRA (Bier Block) procedures. Independent instruments provide flexibility and cost savings to facilities with multiple ORs, by allowing twin systems to be separated and used as two single units. For IVRA procedures, simply bring units back together
Description
Features
Specifications
Purchase
Accessories
PTSii Personalized Tourniquet Systems

Bringing Safety, Performance and Personalization in a Compact Solution!

Delfi’s state-of-the-art  PTSii electronic tourniquet systems have advanced personalization safety features and save valuable space in modern surgical settings.

Available in both single and twin system configurations, fully independent twin channels are color-coded for optimal safety during simultaneous bilateral limb surgeries and IVRA (Bier Block) procedures.

The PTSii Personalized Tourniquet System is used with Delfi’s unique line of personalized tourniquet cuffs for pediatric to bariatric patients, and is compatible with most standard single port tourniquet cuffs.

Features

Two-in-One Solution
Independent instruments provide flexibility and cost savings to facilities with multiple OR’s, by allowing twin systems to be separated and used as two single units. For IVRA procedures, simply bring unis back together.

Intelligent Touch
Intuitive user interface simplifies key tourniquet parameters and user training.

Personalized Pressure Limits
Limits normal maximum pressure to 475 mmHg, and allows selection of extended pressure of up to 600 mmHg if required for individual patients.

Advanced Leak Detection During Surgery
Monitors the tourniquet cuff, tubing and connectors for air leaks during surgery, and safely alerts staff to hazards.

Speed
Reduces set-up and inflates a typical 34" thigh cuff in less than 5 seconds.

Integrated Tourniquet Cuff Testing
Enables cuff testing before or after surgery as recommended in current AORN Standards and Recommended Practices.

Advanced Safety Features
Intuitive time and pressure safety alarms; unique self-test and calibration test; visible displays of pressure and time.

Greatest Battery Life
Up to 10 hours of operation with tested cuffs.

Connectivity
Allows easy integration with OR information networks.

Specifications

Height: 180 mm (7.0 inches)

Width: 120 mm (4.7 inches)

Depth: 110 mm (4.3 inches)

Weight: 1.263 kg (44.5.0 oz)

Cuff Pressure Range: 50 – 475 mmHg, adjustable in 5 mmHg increments, automatically regulated to within +/- 10 mmHg of the selected pressure

Extended Pressure Range: 475 – 600 mmHg

Time Alarm Range: 0-240 minutes, adjustable in 5 minute increments

Inflation Speed: inflates a typical 34″ thigh cuff within 5 seconds

Integrated Tourniquet Cuff Testing: 30 seconds

PTSii Back Panel
Catalogue Number
PTSii Personalized Tourniquet Systems
9-2200-001
PTSii Single Tourniquet System
9-2200-500
PTSii Twin Tourniquet System
9-2200-450

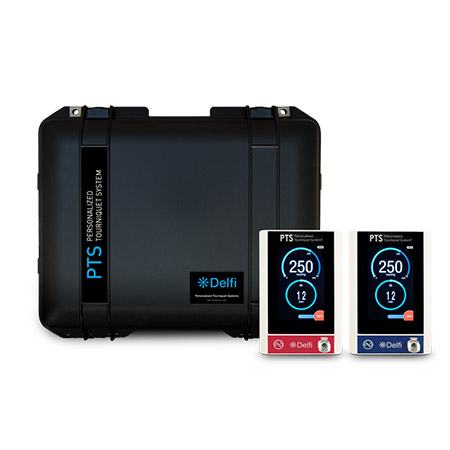

PTSii Single Tourniquet System & Easi-Fit Cuffs Portable Kit includes;
Single System, Easi-Fit Cuffs 18/24/34/44″ and PTS Transport Bag
9-2200-400
PTSii Twin Tourniquet System & Easi-Fit Cuffs Portable Kit includes;
Twin System, Easi-Fit Cuffs 18/24/34/44″, PTS Portable Basket and PTS Transport Case
