Pedi-Fit

Pediatric Cylindrical Cuffs
Pedi-fit tourniquet cuff
Grows Alongside with Children

Soft & Flexible

Design of both cuffs and Matching Limb Protection Sleeves allow close conformance around pediatric limbs, helping lower limb occlusion pressure (LOP)
Description
Features
Specifications
Purchase
Accessories
Innovations for Children

Children are special, and they require special tourniquets for surgery.

Delfi’s Pedi-Fit Pediatric Tourniquet Cuffs with Matching Limb Protection Sleeves were invented specifically for children to meet their unique requirements to help lower limb occlusion pressure (LOP).

Available in four cuff sizes to fit the limbs of neonates to adolescents and provide maximum surgical exposure on small limbs. Both reusable and sterile single-use cuffs are available in single and dual port configurations.

For use with Delfi's PTSii Personalized Tourniquet System, and compatible with most automatic tourniquet instruments.

Features

Soft & Flexible
Design of both cuffs and Matching Limb Protection Sleeves allow close conformance around pediatric limbs for the application of tourniquet pressure

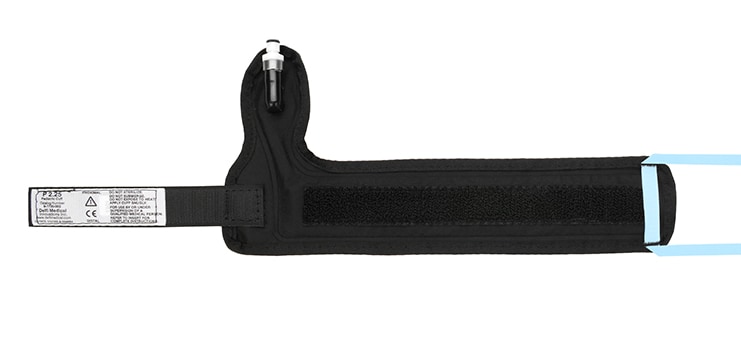

P-Shaped Cuff Design
Allows each cuff to adapt to a wide range of limb circumferences and allows the cuff to conform to small circumference limbs. An offset port guides tubing away from the surgical site, reducing obstruction and making draping of the limb and cuff easier

Two Independent Cuff Fasteners
Help make proper cuff application easier, and provide a secondary means of securing the cuff around the limb

Optimized Cuff Width
The width of each cuff is designed to reduce the need for high tourniquet pressures while providing the maximum surgical exposure

Specifications
Single Port
Dual Port

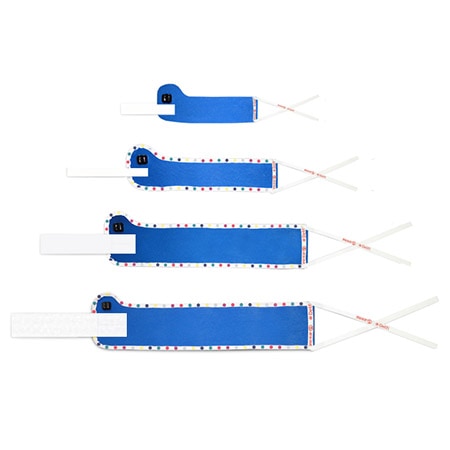

Pedi-Fit Cylindrical Tourniquet Cuffs, Single Use (10/box)
9-9700-001
9-9800-001
1.5" Pedi-Fit Cuff (1.5″ x 7.25″)
9-9700-002
9-9800-002
2.25" Pedi-Fit Cuff (2.25″ x 10.5″)
9-9700-003
9-9800-003
3.0" Pedi-Fit Cuff (3″ x 15″)
9-9700-004
9-9800-004
3.5" Pedi-Fit Cuff (3.5″ x 17.5″)
Each single-use Pedi-Fit Cuff is supplied with (1) non-sterile Matching Limb Protection Sleeves (MLPS)
Single Port
Dual Port

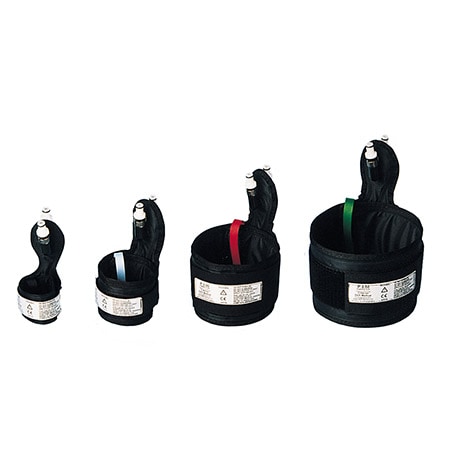

Pedi-Fit Cylindrical Tourniquet Cuffs, Reusable (1 each)
MLPS
9-7700-001
9-7800-001
1.5" Pedi-Fit Cuff (1.5″ x 7.25″) black tie ribbons
9-7900-001 (10/box)
9-7700-002
9-7800-002
2.25" Pedi-Fit Cuff (2.25″ x 10.5″) blue tie ribbons
9-7900-002 (10/box)
9-7700-003
9-7800-003
3.0" Pedi-Fit Cuff (3″ x 15″) red tie ribbons
9-7900-003 (10/box)
9-7700-004
9-7800-004
3.5" Pedi-Fit Cuff (3.5″ x 17.5″) green tie ribbons
9-7900-004 (10/box)
9-7700-005
9-7800-005
Pedi-Fit Cuff Set of 4, includes one of each: 1.5"/2.25"/3.0"/3.5"

Each reusable Pedi-Fit Cuff is supplied with (5) non-sterile Matching Limb Protection Sleeves (MLPS)
Ordering is Easy

To place an order, or to obtain additional information on Delfi products, please contact our sales and technical staff:

Phone: (800) 933-3022 (Toll Free in North America)

Phone: (604) 742-0600 (Direct)

Email Sales Team
